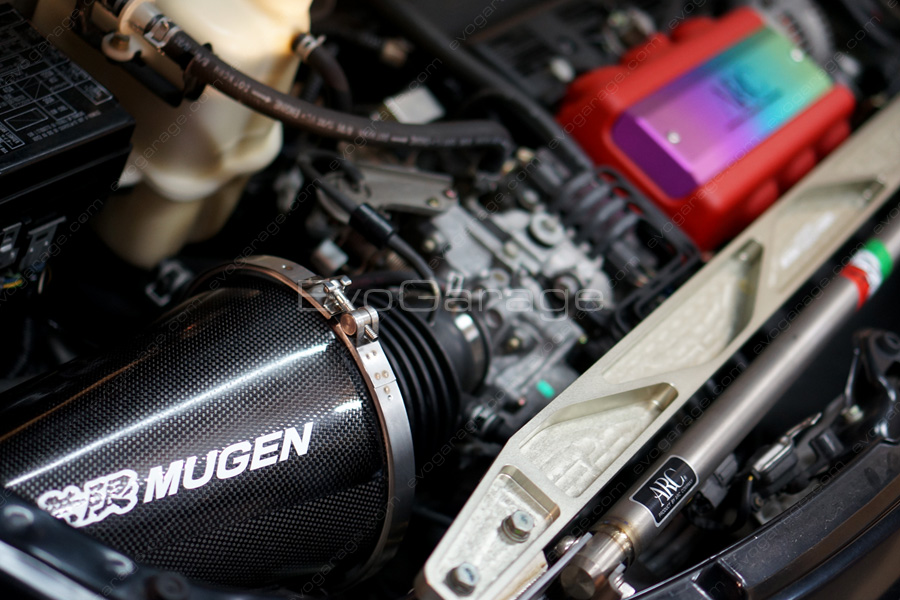

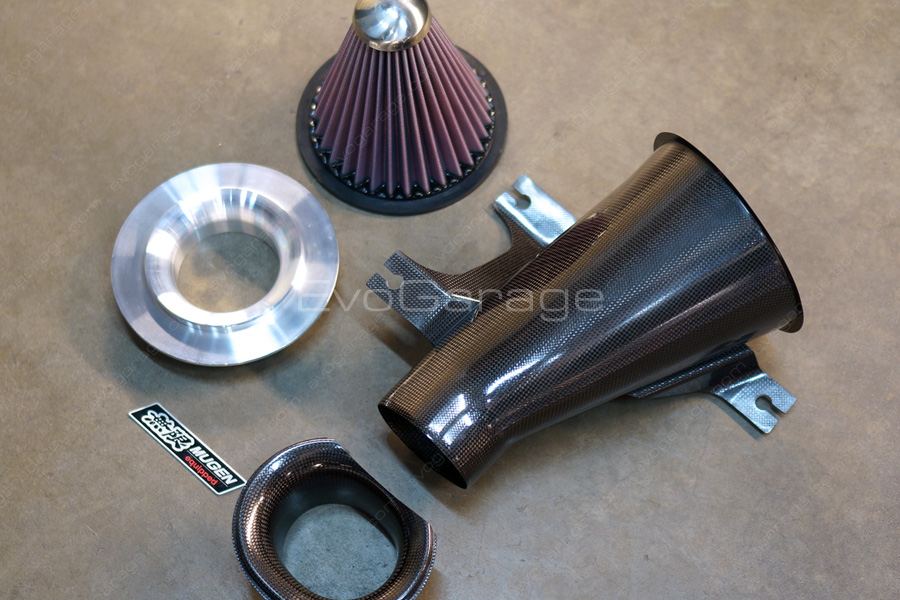

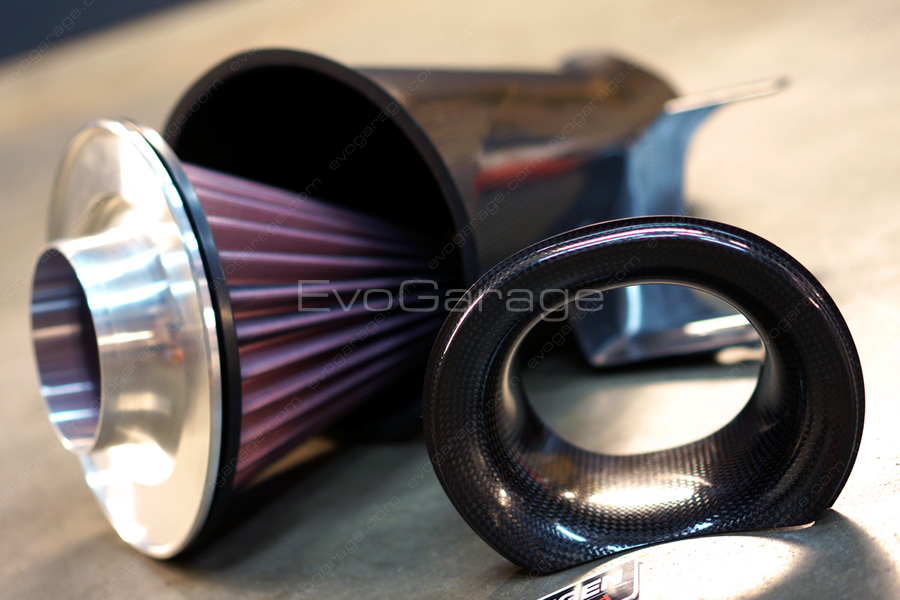

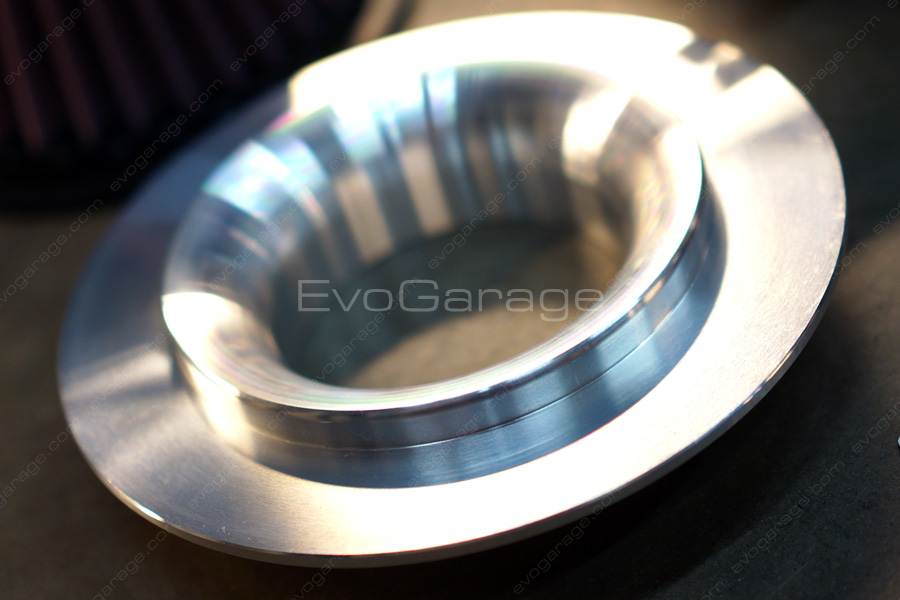

HONDA NSX MUGEN INTAKE SYSTEM

Honda NSX Intake System

More Japan-a-glish from Mugen Japan. >>

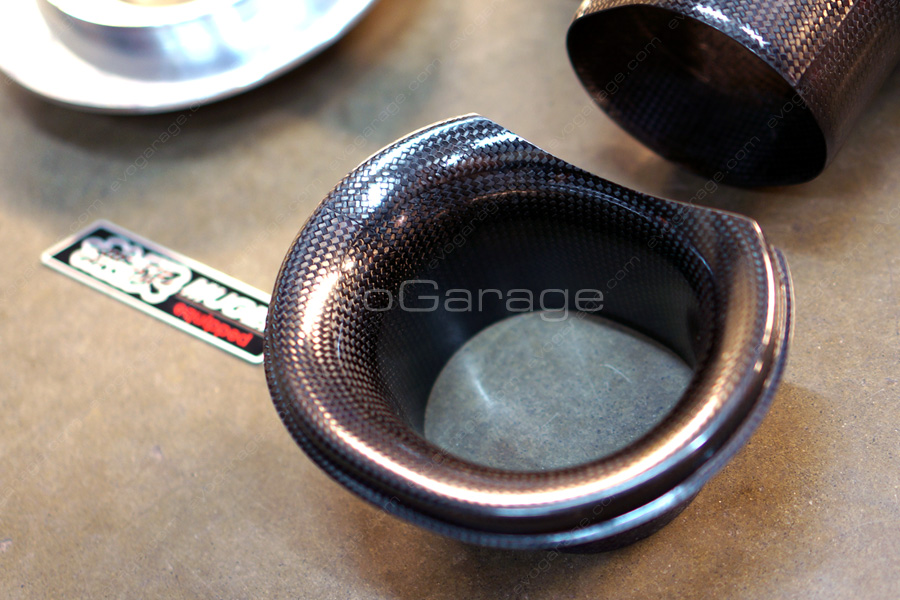

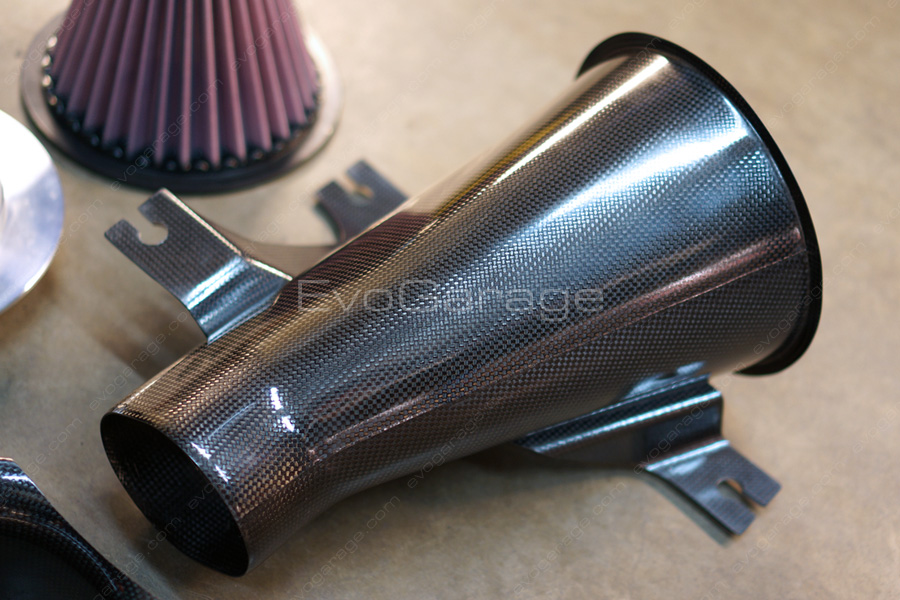

To decrease air intake resistance and temperature, inhaling more air through air intake improves combustion efficiency, which leads to a power increase. The technology and capability MUGEN devotes to “High performance intake systems” are always related with GT and Formula machines competing at circuits.

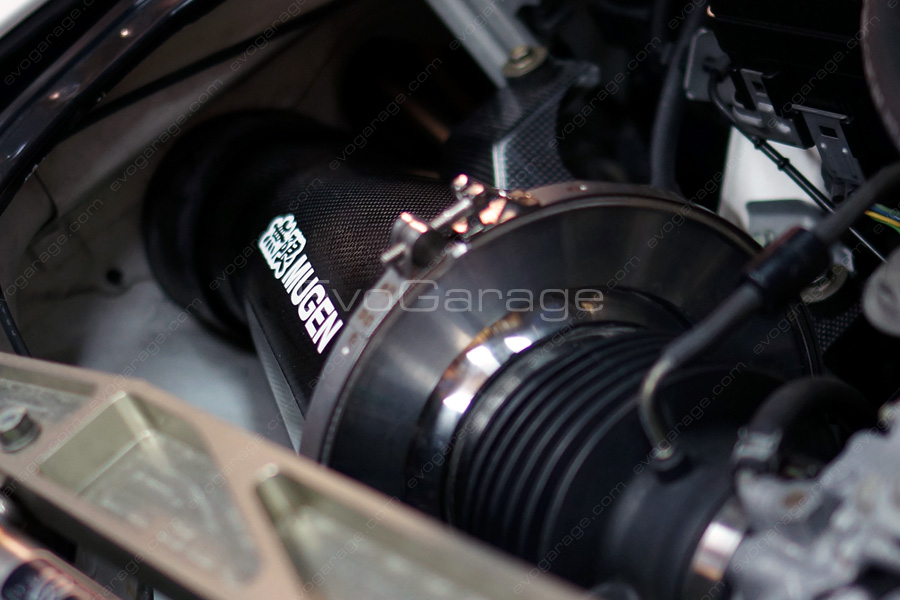

Temperature can be a burden when it comes to sending as much fresh air as possible into cylinders. “Hi-performance air cleaner and box” whose inlet position is optimized as replacement for genuine part. Air inlet layout, its capacity, the material of box and filter are all designed and developed for each vehicle model individually so as not to compromise the installation and/or cause elevated air temperatures. Also in the case of S2000 and INTEGRA, MUGEN aerodynamic bumpers have been developed in conjunction with the air box. Installation of both parts results in absolute performance increase.

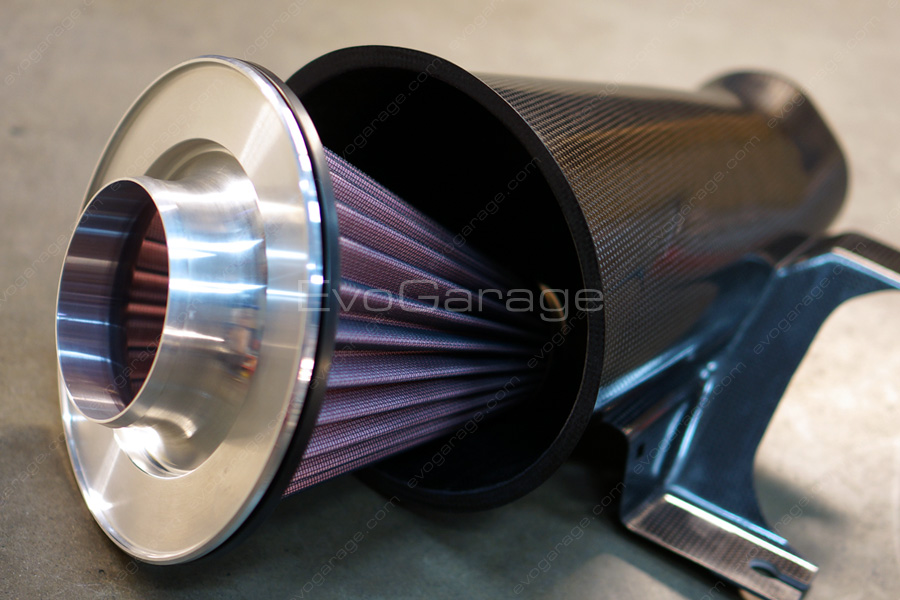

“High performance air filter” is a replacement type moistened with oil and with a stainless steel mesh employed as a core part of the filter. Due to the low density sponge material, the flow resistance of the filter itself decreases by 50%.

However even a tiny dust particle cannot be allowed to enter the cylinders, and the severe conditions imposed by both motor sports and street driving continue to drive the development. Drawing on the experience gained in its long history and association with racing, the filter MUGEN supplies for air cleaner has a large and rigid inlet cross-sectional area and is made of the same material as that utilized for racing cars.

Honda NSX Intake System
Honda NSX Intake System
Honda NSX Intake System
Honda NSX Intake System
Honda NSX Intake System
Honda NSX Intake System
Honda NSX Intake System
Honda NSX Intake System
Honda NSX Intake System

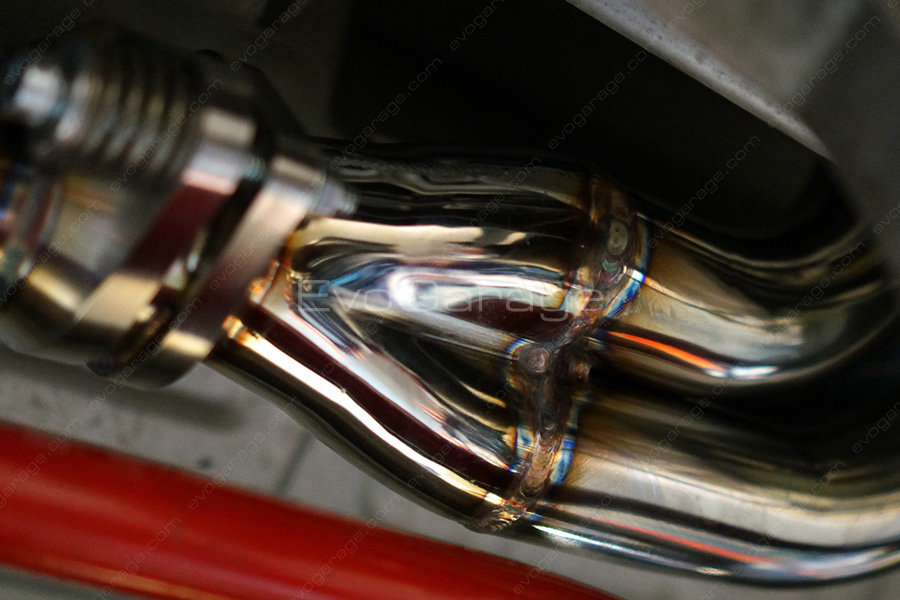

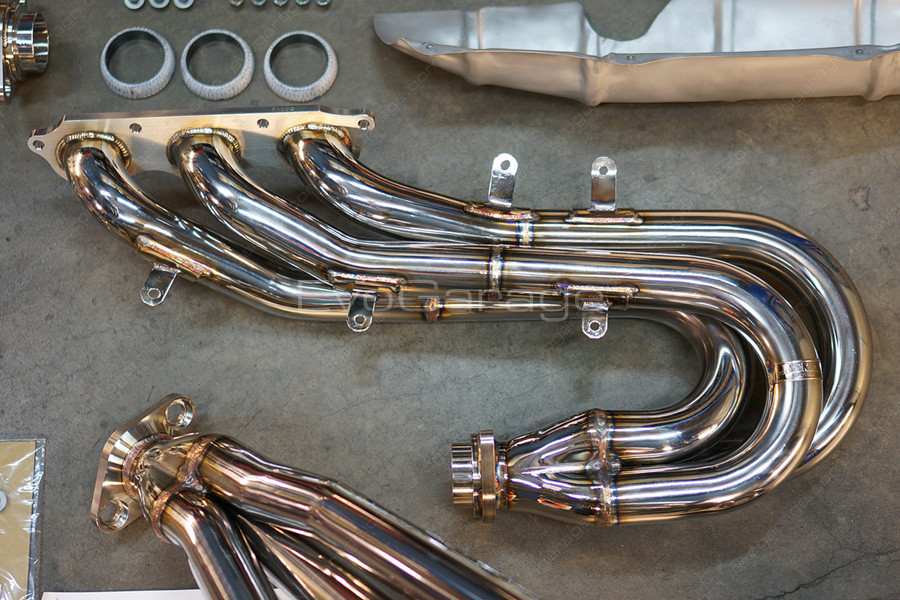

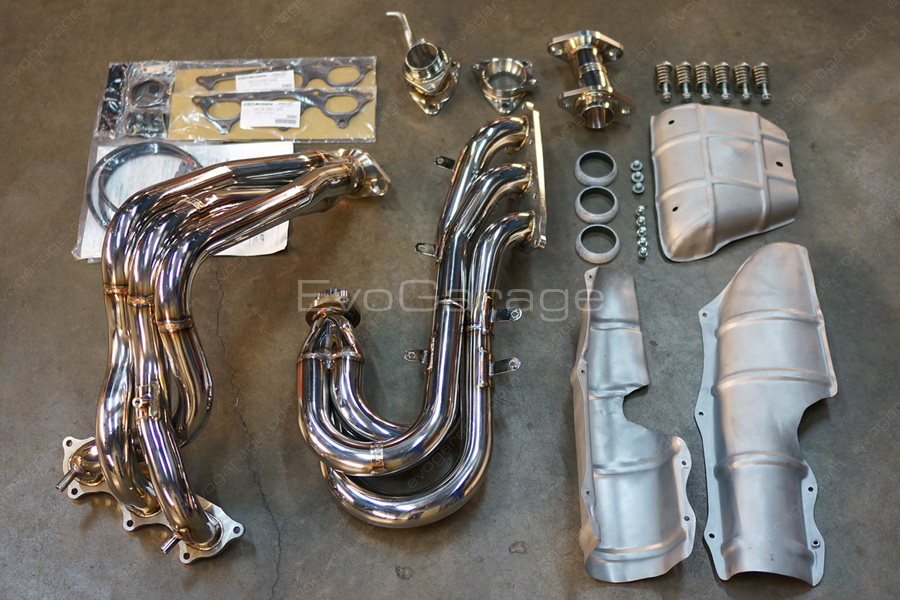

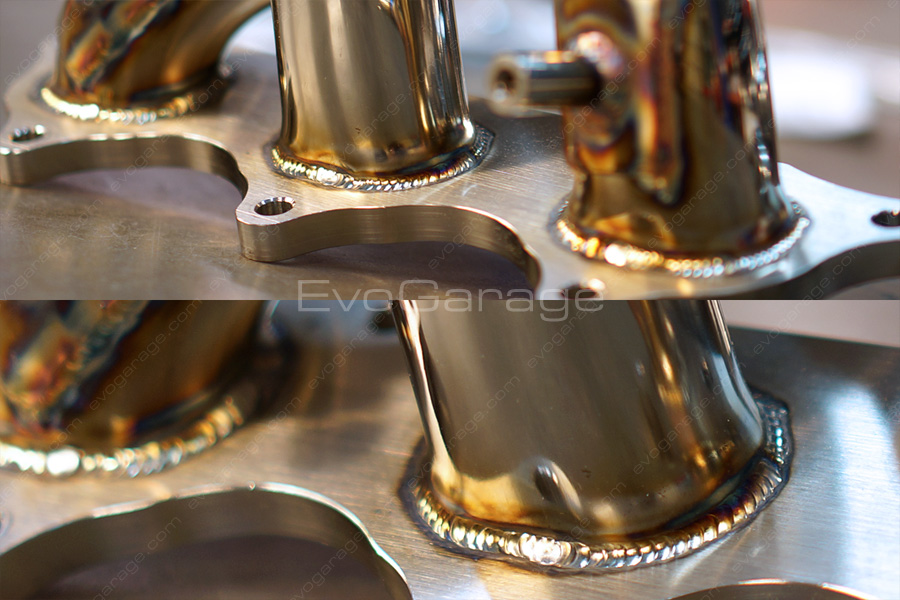

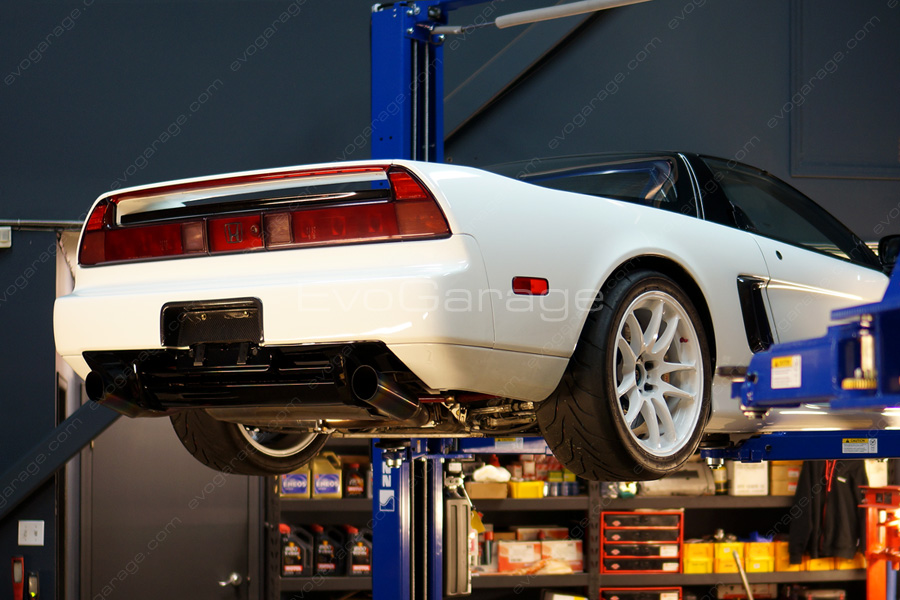

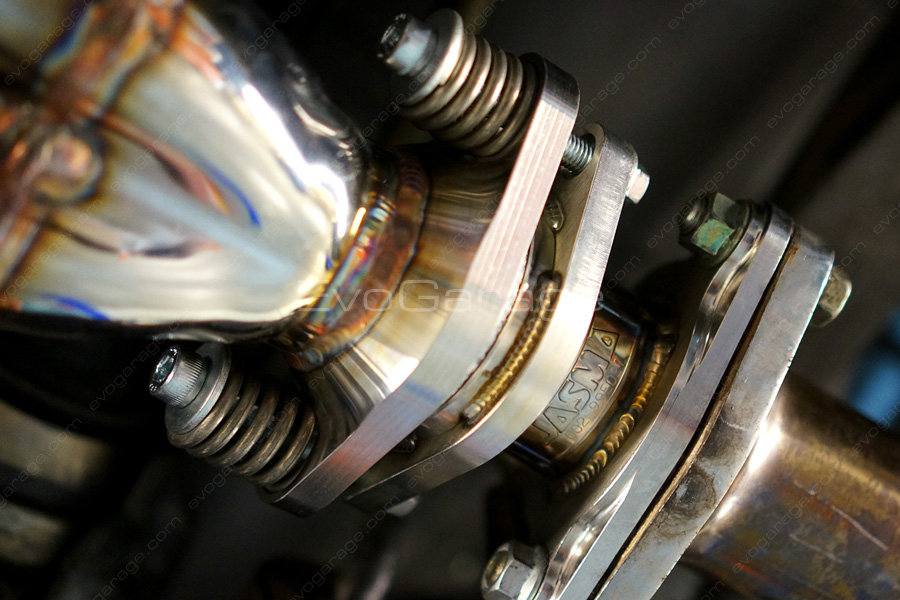

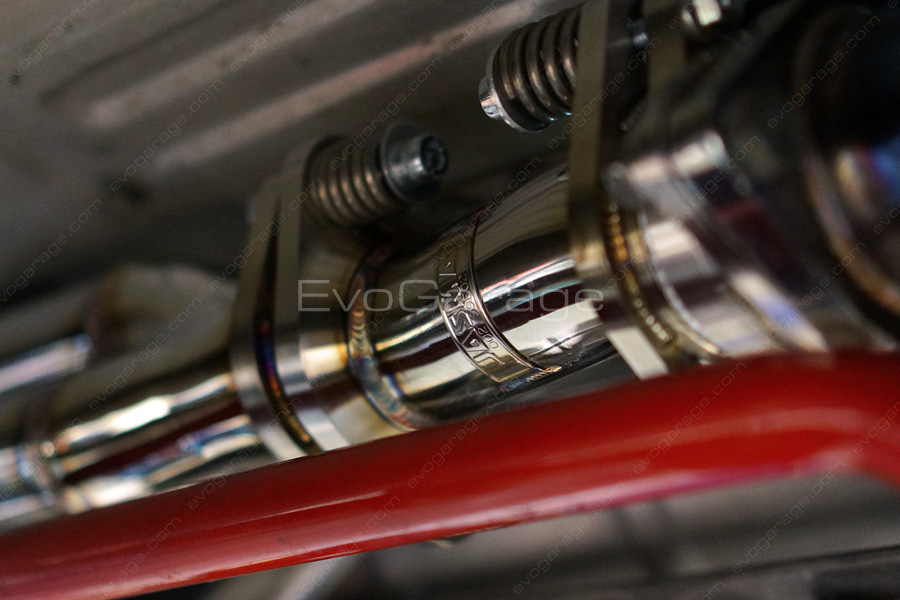

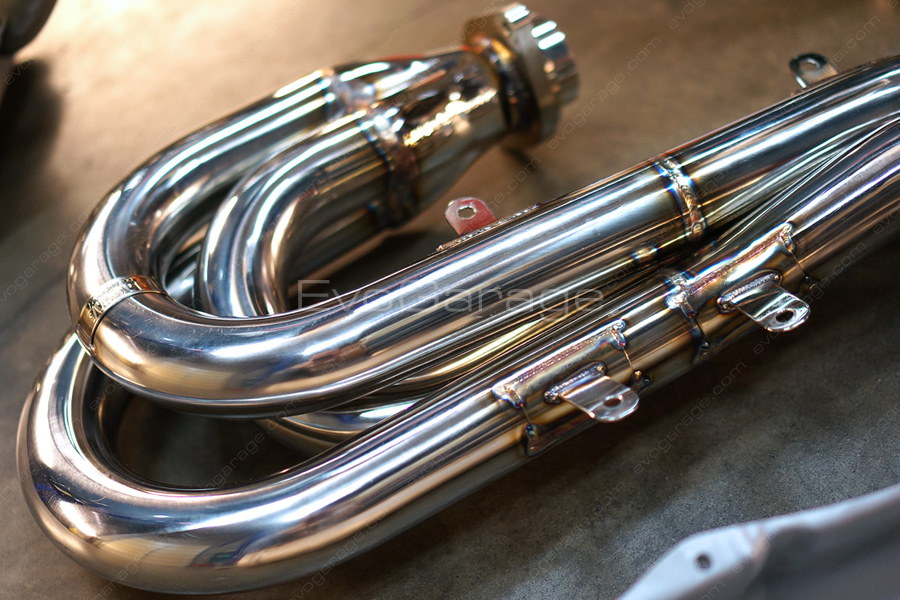

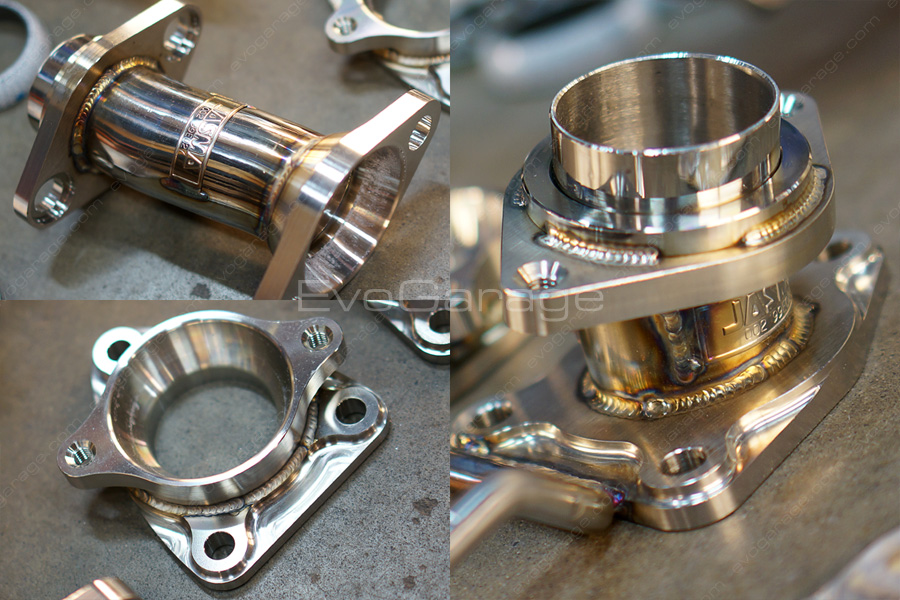

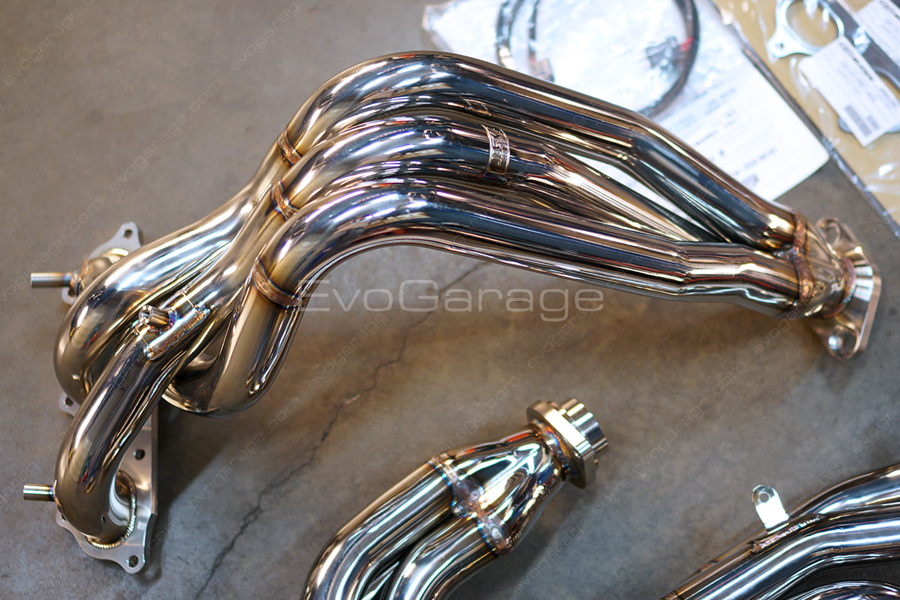

HONDA NSX MUGEN EXHAUST MANIFOLD

Honda NSX Mugen Exhaust Manifold

Here is some literature for those that are interested, those that cannot be bothered, keep scrolling. Please excuse the Japan-a-glish, it was directly translated from Mugen Japan. >>

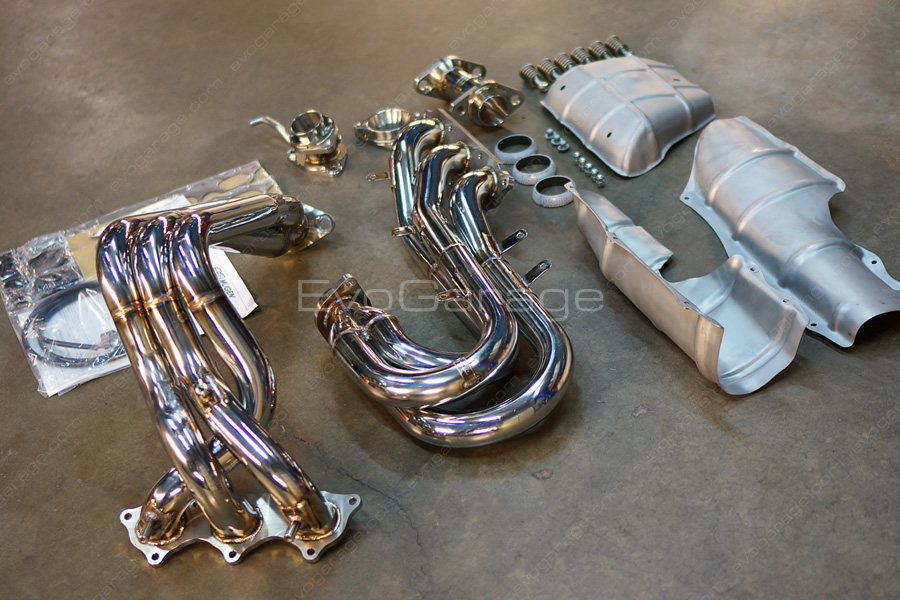

What is required for the development of the exhaust manifold is having equal length of pipes and perfect exhaust gas flow. On the dynamometer bench test, the pulsation, resonance and inertial effect of the exhaust gasses emitted from each cylinder in addition to the connecter’s position of the primary, secondary, and collector as well as the pipe’s diameter were studied to find out its optimum layout by delicately adjusting each length of the exhaust pipe and repeatedly making and trying the different configurations.

Furthermore we would like to recommend High-Performance Engine Oil VT-α, which fulfills the hidden potentials gained through MUGEN manufacturing technology. This engine oil is 100% chemically compounded oil of SAE 5W-40 developed through repeated bench tests to be suitable for the Honda VTEC engine. High specification engine oil possessing proper viscosity; and with newly developed additives (MODIC: organic molybdenum), it can hold an oil film under severe conditions. Though performance of the engine oil is in no way inferior to that of the racing engine oil, it also has oxidation resistance and low temperature stability ideal for street use. MODIC, organic molybdenum can quickly be penetrated into the metal friction surface where it makes a smooth metal surface by forming strong lubricating surface which in turn reduces the friction resistance and minimizes the loss of engine power as a result. Proven by bench-testing.

We believe that the oil line also plays a very important role. The MUGEN oil filter is exclusively developed for naturally aspirated engines and has “Y” shape cross section rather than a round cross section of the ordinarily fiber filter material. By adopting the “Y” shape, we were able to succeed in reducing the sludge reentering into the system with the sludge efficiently stuck on to the filtering fibers. At the same time, pressure loss is reduced by 10% and significantly increases the high temperature resistance capability.

Honda NSX Mugen Exhaust Manifold
Honda NSX Mugen Exhaust Manifold
Honda NSX Mugen Exhaust Manifold
Honda NSX Mugen Exhaust Manifold
Honda NSX Mugen Exhaust Manifold
Honda NSX Mugen Exhaust Manifold
Honda NSX Mugen Exhaust Manifold
Honda NSX Mugen Exhaust Manifold
Honda NSX Mugen Exhaust Manifold
Honda NSX Mugen Exhaust Manifold

PARTING WITH A COUPLE RALLY LEGENDS

Lancia Delta Integrale Evo I
Lancia Delta Integrale Evo I Martini 5 Special Edition

It may be a good while before we see four Evos together under one roof again, at least in North America. Two of the Integrales will be leaving for German soil this coming week. One of which is the Evo I Martini 5 Special Edition, only four-hundred were ever built. Released in 1992 to commemorate Lancia for their fifth World Rally Championship title. This model had the original Martini 5 motif updated with that of the Martini 6, the larger 17 inch Speedline Montecarlo wheels were also fitted along with a Group-B exhaust system.

Lancia Delta Integrale Evo I

The second car is also an Evo I. Though not of Special Edition class, it is still a gem.

Lancia Delta Integrale Evo I Martini 5 Special Edition
Lancia Delta Integrale Evo I Martini 5 Special Edition
Lancia Delta Integrale Evo I Martini 5 Special Edition
Lancia Delta Integrale Evo I Martini 5 Special Edition
Lancia Delta Integrale Evo I Martini 5 Special Edition
Lancia Delta Integrale Evo I Martini 5 Special Edition
Lancia Delta Integrale Evo I Martini 5 Special Edition
Lancia Delta Integrale Evo I Martini 5 Special Edition
Lancia Delta Integrale Evo I Martini 5 Special Edition
