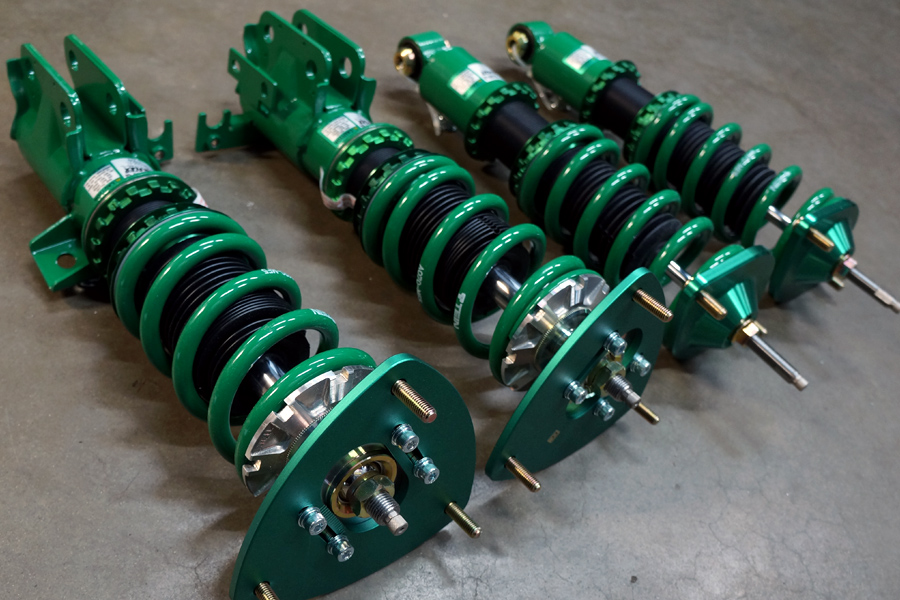

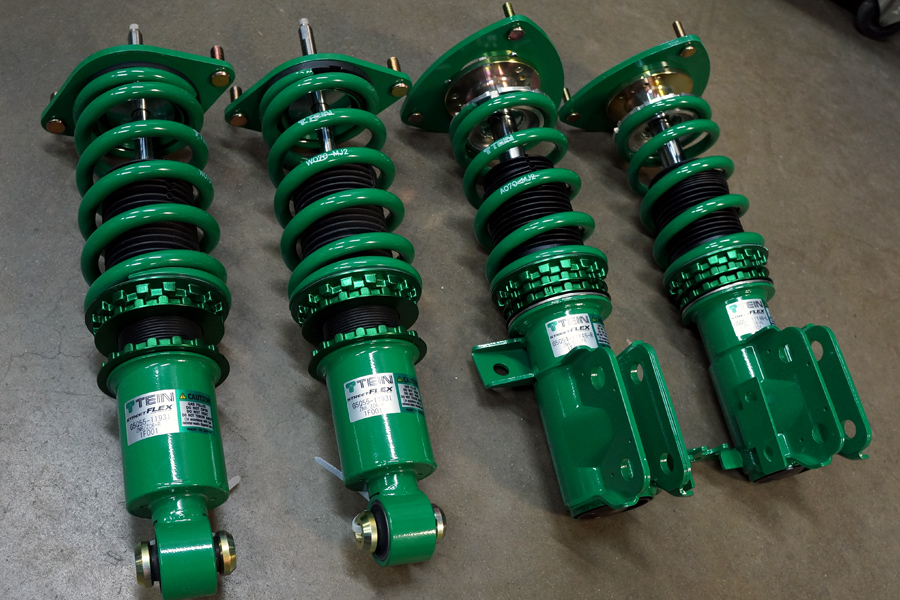

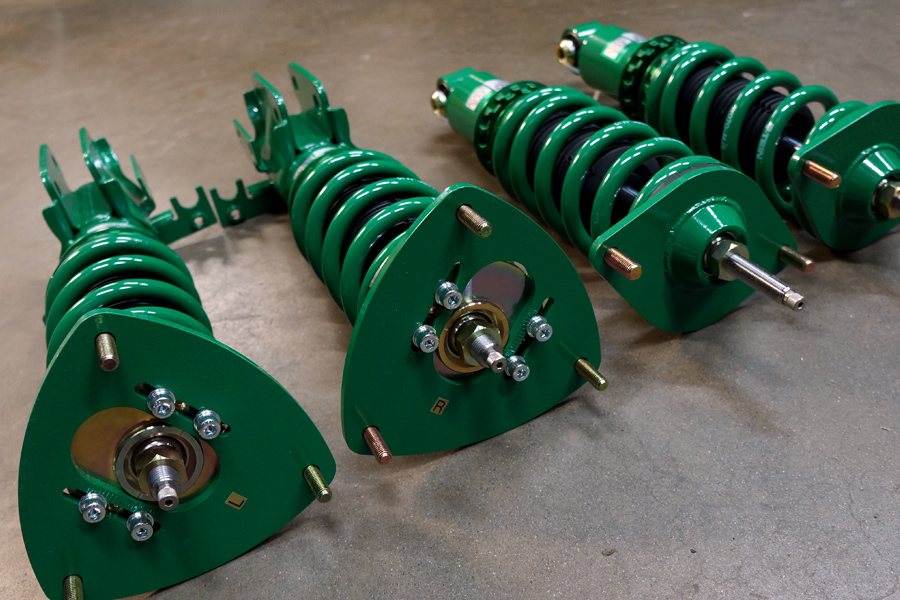

TEIN TYPE AND STREET FLEX DAMPER SYSTEMS FOR THE BRZ
TEIN TYPE FLEX
TEIN has used its years of experience in various motor sports to produce a kit that provides the ultimate balance between comfort and performance. Developed for drivers seeking an aggressive coilover that can be used daily, and provide all the adjustments needed for circuit use. The FLEX damper Kit features the latest technology for all drivers who are seeking performance, and adjustability, while not giving up all ride comfort. We have incorporated separate spring perch height, and shell case length adjustment, which allows the suspension to retain more stroke and allows for more suspension tuning. The FLEX damper kit includes pillow ball upper mounts, which increase steering response; 16 levels of damping force adjustment, and is compatible with the EDFC (Electronic Damping Force Controller) for added convenience and adjustability.
Additional Features:
• Steel Construction
• Twin Tube internal construction
• Ride Height adjustable via threaded body and spring seats
• 16 way adjustable dampers, compression and rebound combined
• Pillow ball upper mounts for increased steering feel
• Upper camber adjustment on front for strut type vehicles
• Larger piston diameter for strut type front and rear (22mm)
• EDFC (Electronic Damping Force Controller) compatible
• Powder coated brackets with Teflon coated shock body for heavy duty rust prevention
• 1-year Manufacturers Defect Warranty

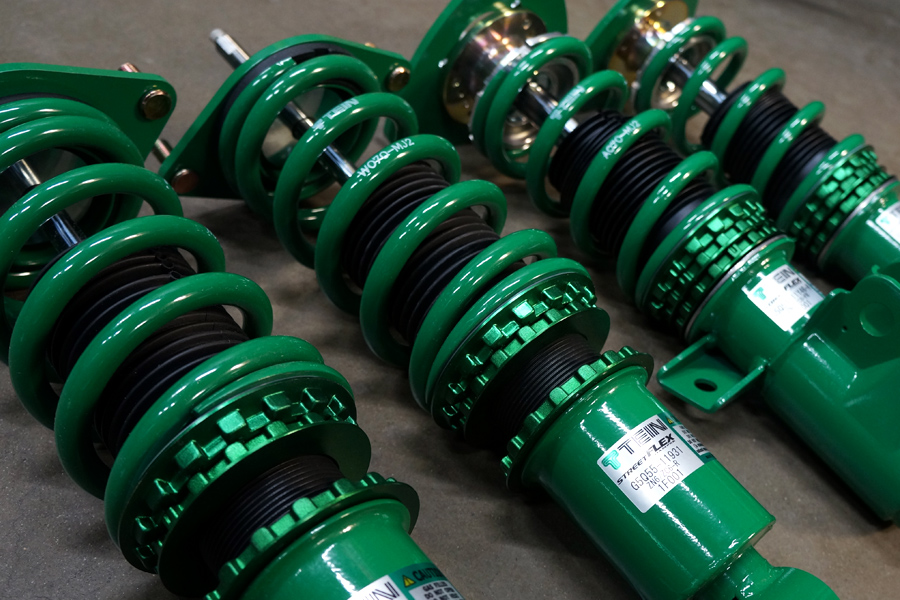

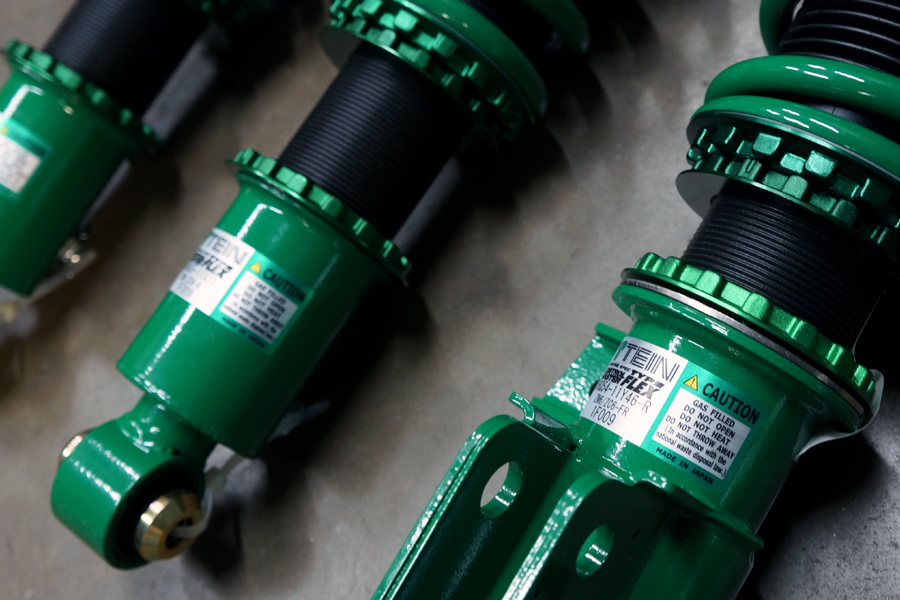

TEIN STREET FLEX
The Street Flex damper is the evolution of our popular Type Flex coilover. Developed to provide the ultimate balance of comfort and performance for both street driving and circuit use, along with wide-range damping force adjustment using our new Advance Needle technology and new damper valving specs, giving the driver a much more noticeable feel in damping force change and controllability. The shortened shell case design provides optimum damper stroke at lower than standard vehicle ride height. Full-length adjustability offers separate spring preload and ride height adjustment. Updated internal components and external coatings increase durability and product life. Includes Pillowball Upper Mounts (camber adjustable for strut type applications) and is compatible with the EDFC and EDFC Active systems.
Additional Features
• Steel Construction
• Twin Tube Internal Construction
• Full-Length Adjustable via Threaded Body and Spring Seat/Seat Locks
• 16-Way Damping Adjustable (simultaneous compression and rebound)
• New Damper Valving Specifications for Improved Street Comfort
• Incorporated Advance Needle Design (nearly 200% improvement over predecessor)
• Pillowball Upper Mounts for increased steering feedback
• Camber Adjustable for Strut Type Front Suspensions
• Larger Piston Diameter (22mm O.D.) for Strut Type
• EDFC (Electronic Damping Force Controller)/EDFC Active Compatible
• Powdercoated Brackets and ZT Coated Shellcase for Outstanding Rust Prevention
• One Year Warranty Against Manufacturer’s Defects

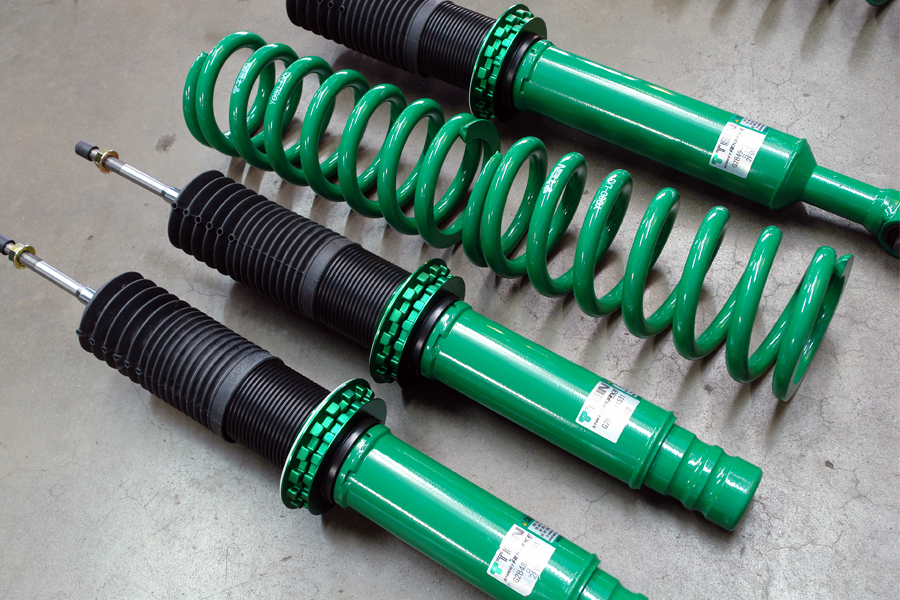

TEIN STREET ADVANCE DAMPER
The Street Advance damper is the evolution of our popular Super Street coilover. Developed to provide a sporty ride feeling and aggressive stance, along with wide-range damping force adjustment using our new Advance Needle technology, giving the driver a much more noticeable feel in damping force change. The shortened shell case design provides optimum damper stroke at lower than standard vehicle ride height. Vehicle ride height is adjustable via the ZT coated threaded sleeve. Updated internal components and external coatings increase durability and product life. Street Advance dampers are great for daily driving and spirited driving for all types of drivers.
Made in Japan under strict quality control standards and developed by highly trained suspension engineers.
• Steel Construction
• Twin Tube internal construction
• Larger piston diameter for strut type front and rear (22mm)
• 16-way Damping adjustment with over 200% increase in damping force change.*
• Ride Height adjustable via spring seat
• Powder coated damper body
• Non-welded ZT coated Adjustment Tube
• Full-Length Dust Boots
• 1-piece Aluminum Spring Seat with Delrin Thrust Washer
• Available for Overhaul
• 1-year Manufacturers Defect Warranty
*over comparable Super Street damper, based on damping dyno graph data. Increase in damping force over comparable Super Street damper may vary for specific vehicle applications.

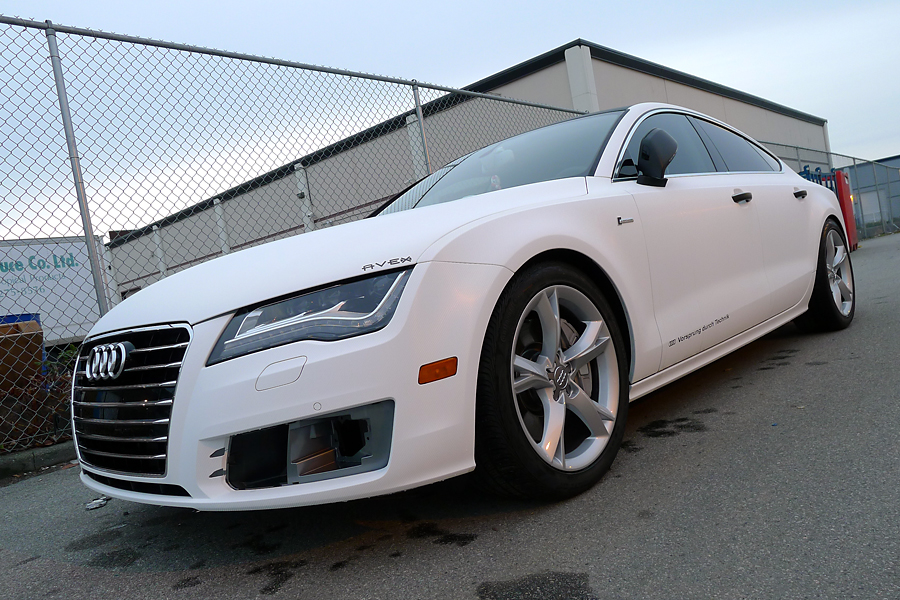

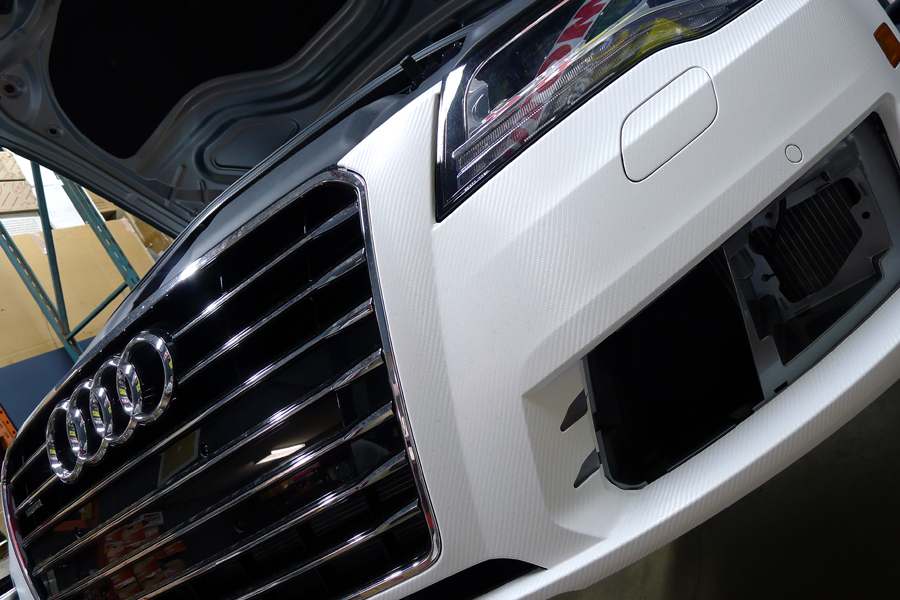

STASIS TREATMENT TO THE AUDI A7

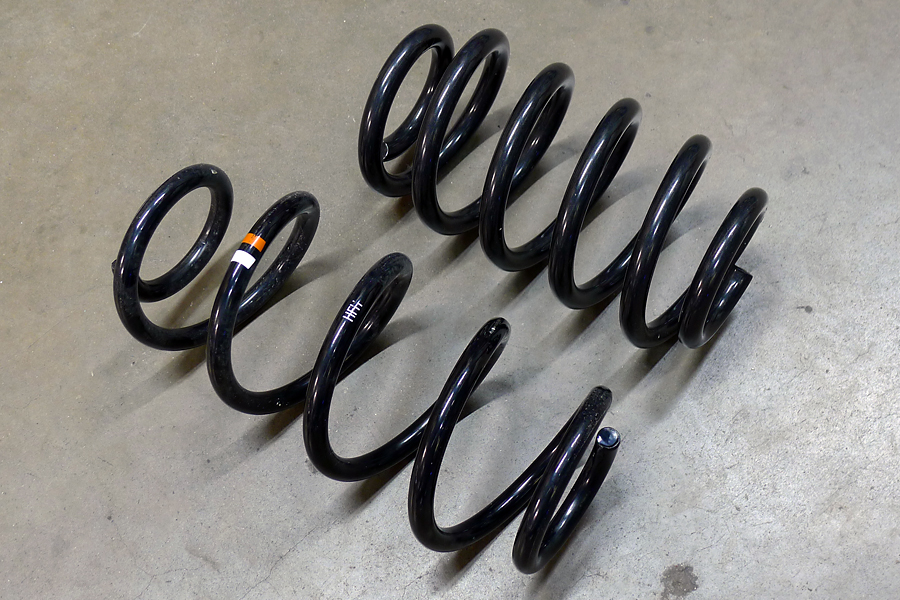

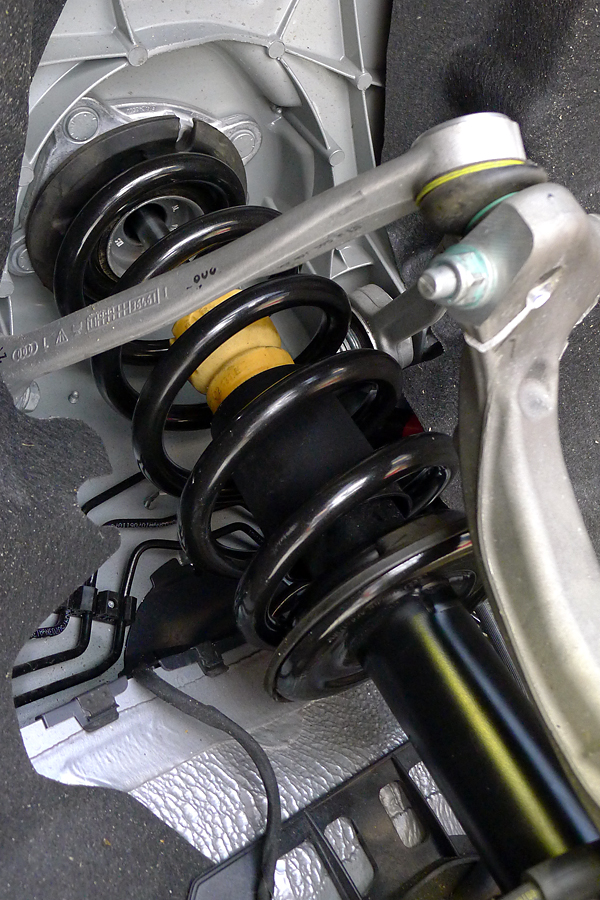

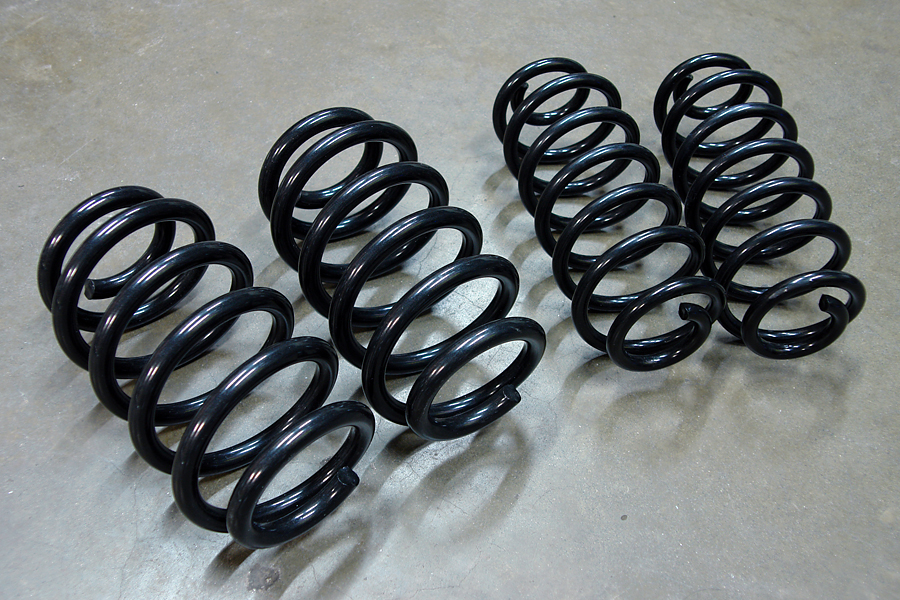

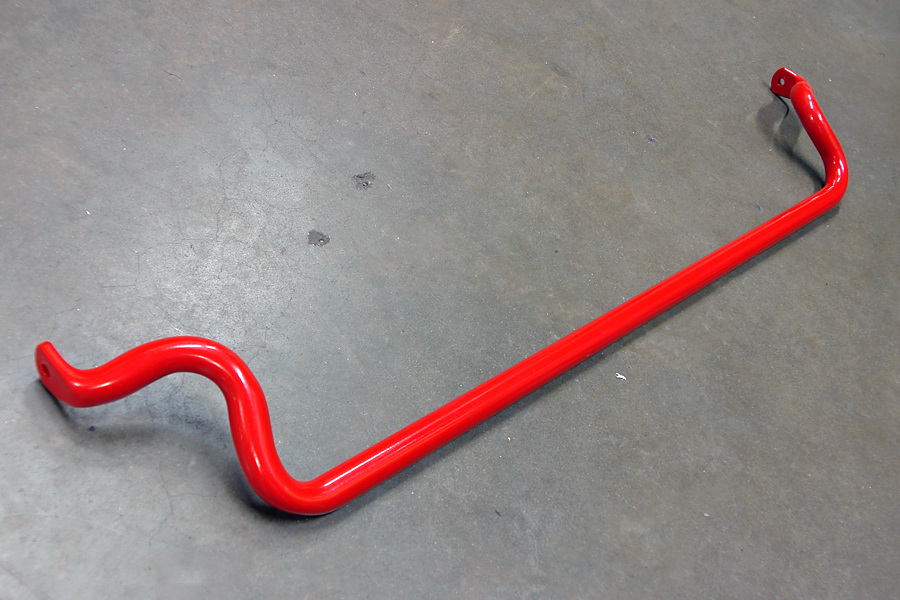

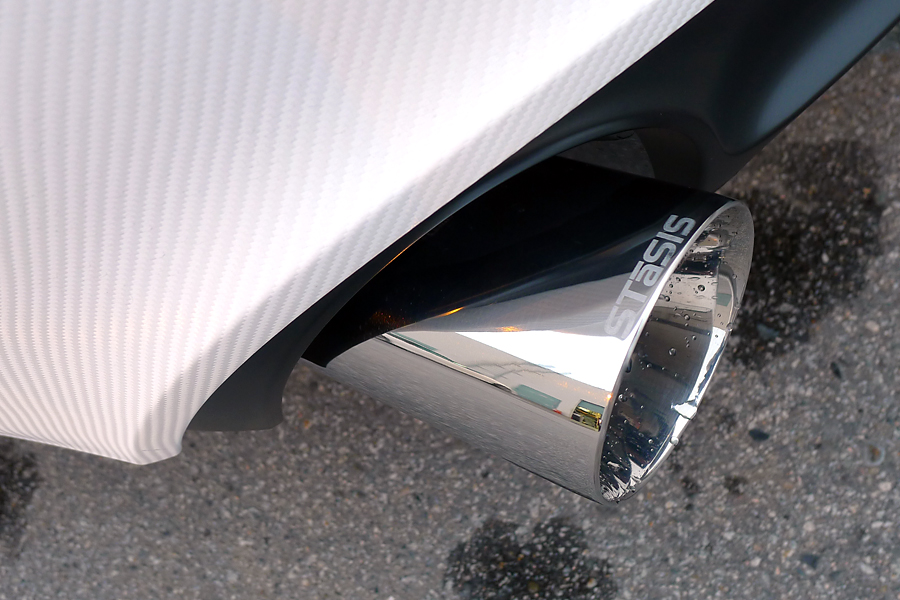

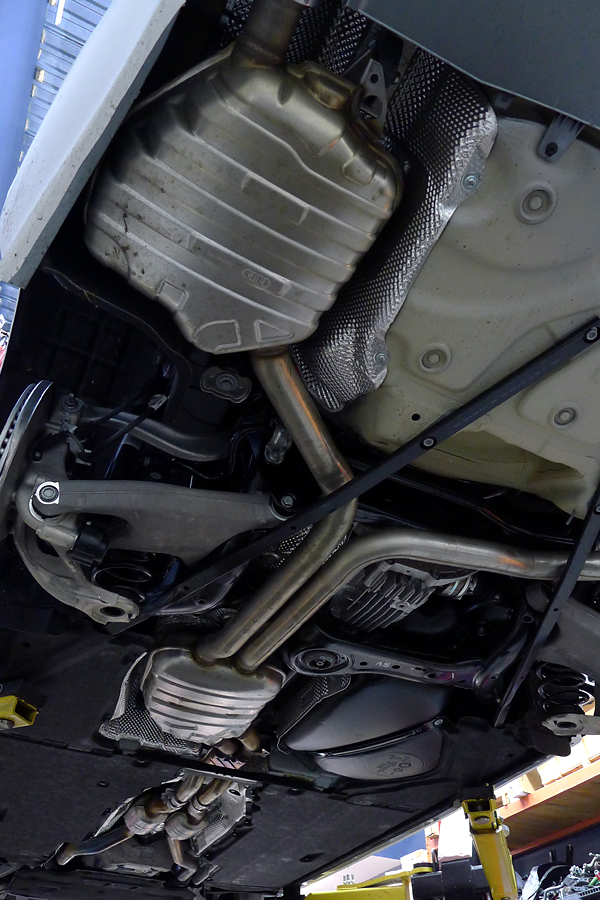

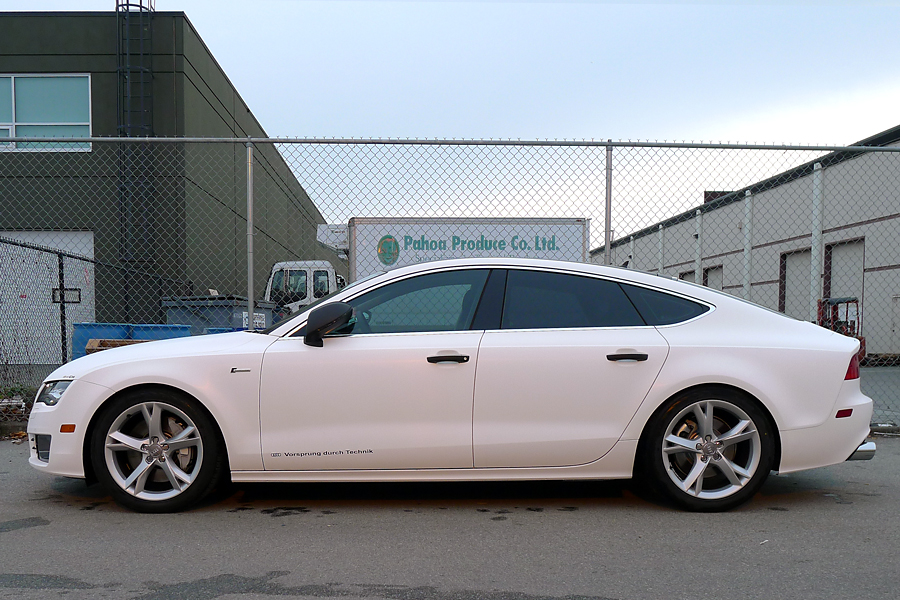

In addition to the exhaust system which was covered yesterday, a suspension package was also installed tonight on the Audi A7. The STaSIS package included a set of touring lowering springs and a rear sway-bar.
Notes:
Suspension: Responsive and Refined – STaSIS carefully balances the interdependent systems of springs, sway bars, and dampers with ride height and alignment, drastically improving grip without sacrificing comfort.
Our Touring suspensions lower your stance for better weight transfer while maintaining the factory Drive Select functionality. We’ve engineered an increased spring rate to improve your car’s response, and high-performance roll bars for added corning group, giving you an introduction to the exotic performance experience. Our Street Sport suspensions, available for some models, add customizability, allowing you to adjust your ride height to meet your personal needs.
Our Challenge suspensions go a step further, unleashing your car’s ultimate potential. We use Ohlins SL coil-over technology and STaSIS double digressive valving for factory-level ride comfort with competition-level response to driver inputs, This suspension uses increased spring rates and anti-roll bars to improve driver response and reduce body roll. For the extreme enthusiast, we offer Motorsports suspensions for some models, giving you the ultimate in customization capability.

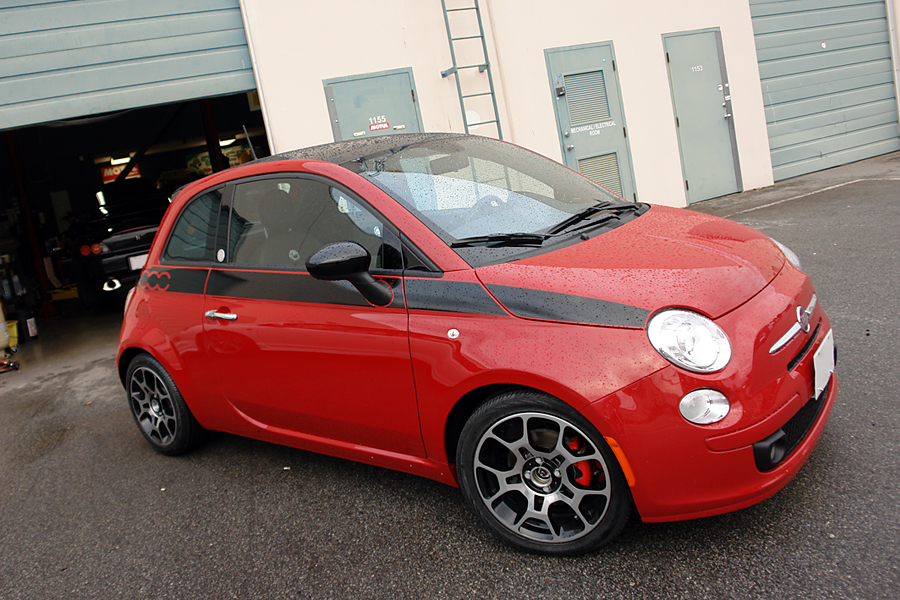

SUSPENSION SYSTEM FROM NOVITEC FOR THE FIAT 500
Today we look at the Novitec coilover system for the Fiat 500, please note that this kit is design for the European market and will not directly fit the North American model. In order to have this properly installed, we had to redesign and CNC new hardware for this kit.

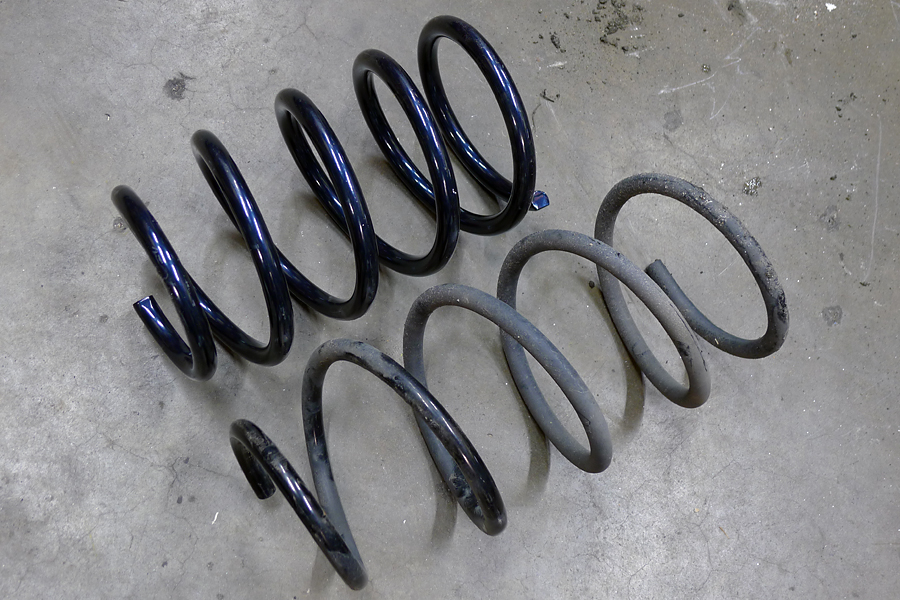

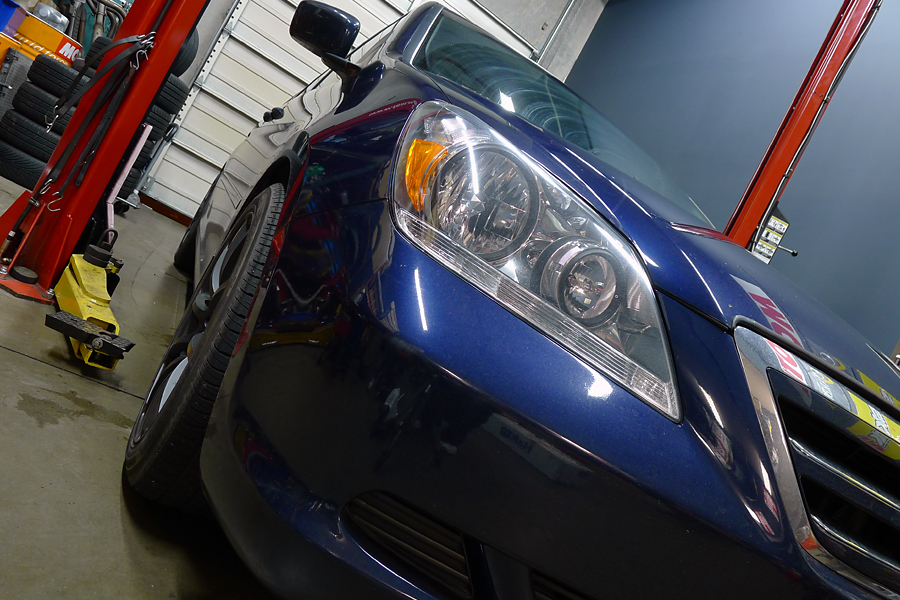

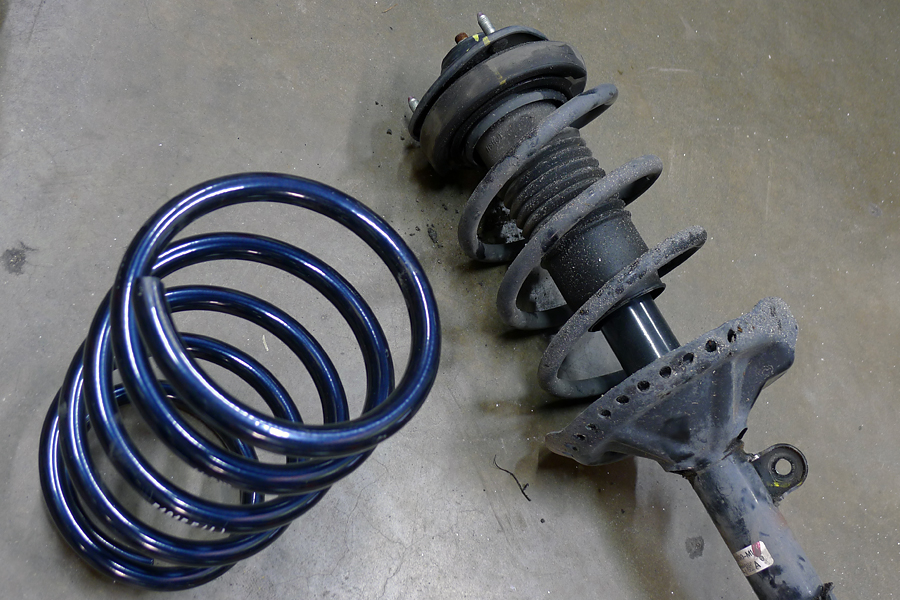

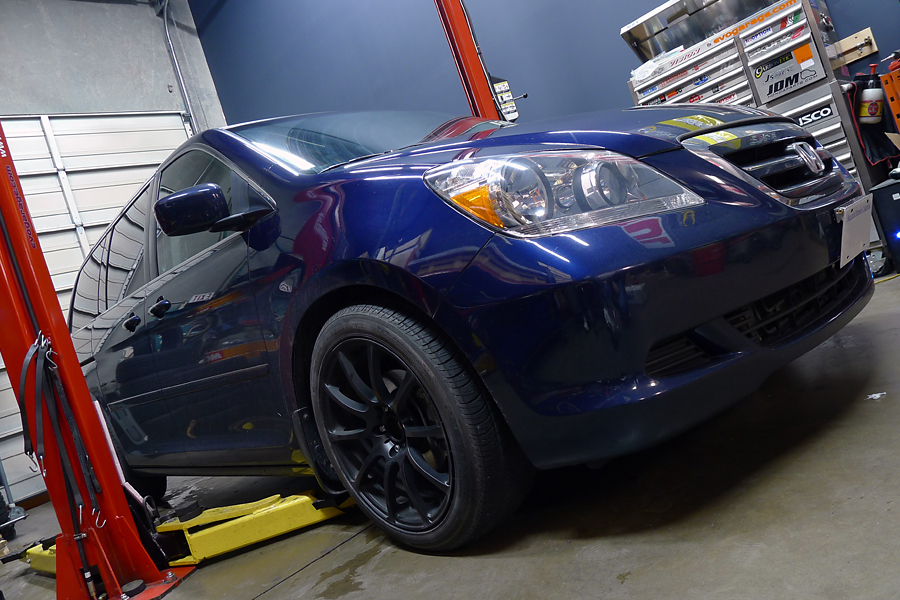

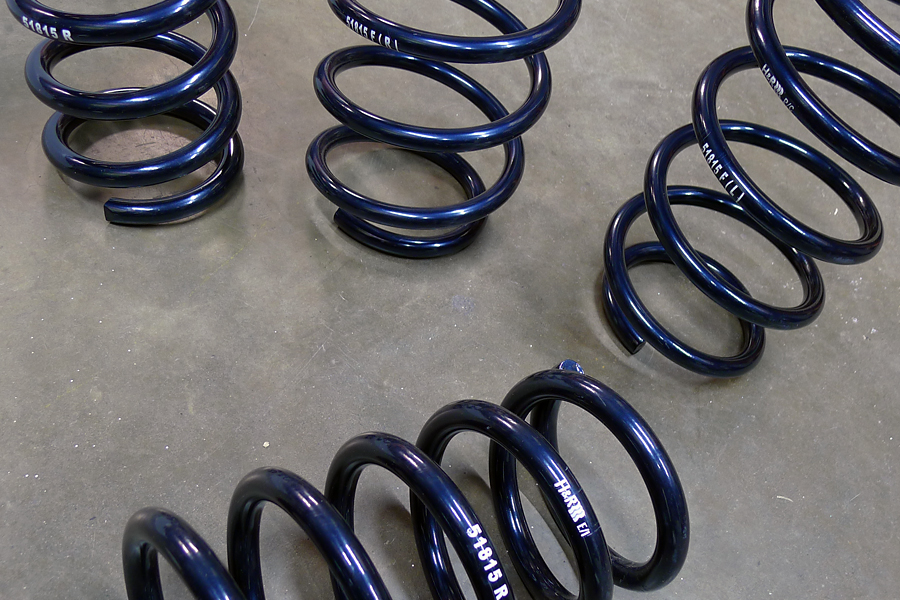

HONDA ODYSSEY ON H&R LOWERING SPORT SPRINGS
Information from H&R;
Sport Spring kits are H&R’s number one selling product. Enhance the look of your vehicle with a reduced fender well gap. H&R Sport Springs lower the vehicle center of gravity and reduce body roll for better handling. The progressive spring rate design provides superb ride quality and comfort. A lower wind resistance signature will make the vehicle more streamlined and improve gas mileage. If you are only looking to improve one part of your vehicle’s suspension, you cannot go wrong with installing Sport Springs. Fun to drive, H&R Sport Springs are the number one upgrade for your vehicle.

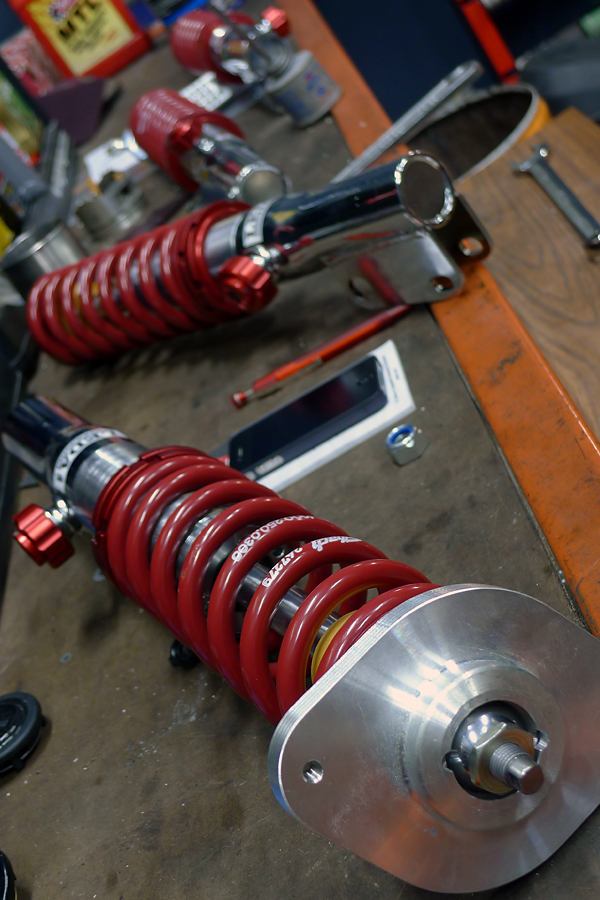

LEDA SYSTEM INSTALL ON THE INTEGRALE EVO

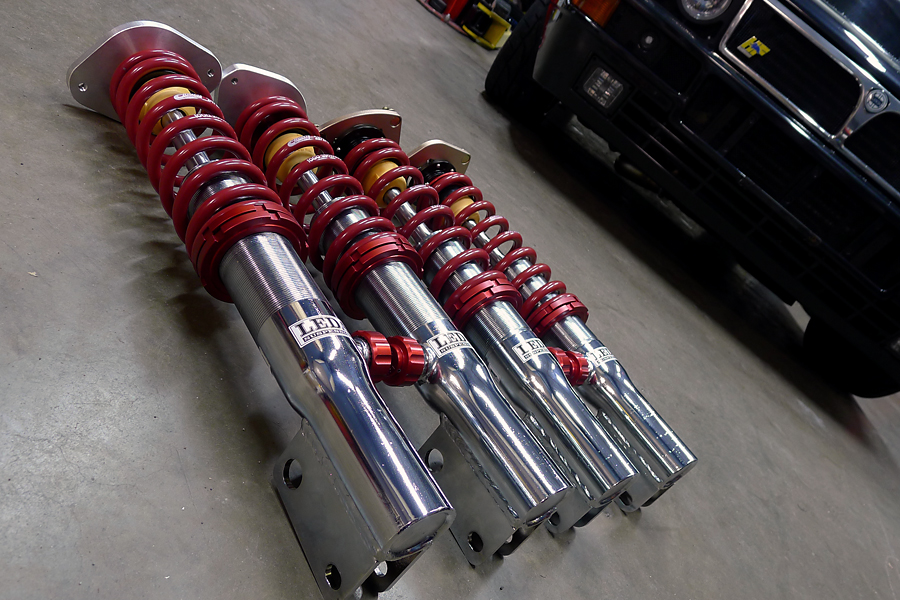

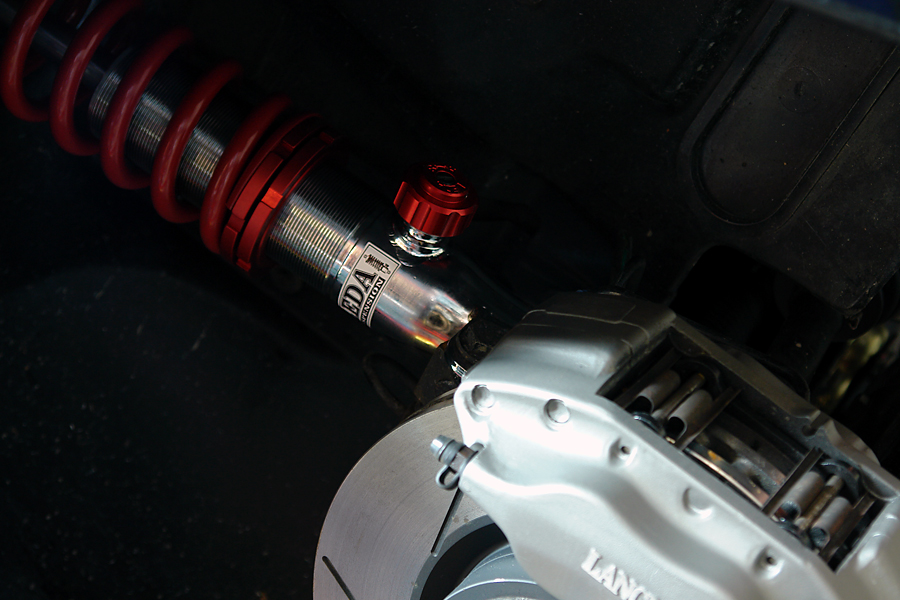

The superior suspension setup consisting of Koni Yellows with Eibach springs were taken out of the Integrale Evo a couple nights ago, from the car to it’s final resting place, the trash bin. For it’s replacement the Evo was given a brand new set of custom made 24-way adjustable bound and rebound Leda coilovers paired to some Eibach springs.

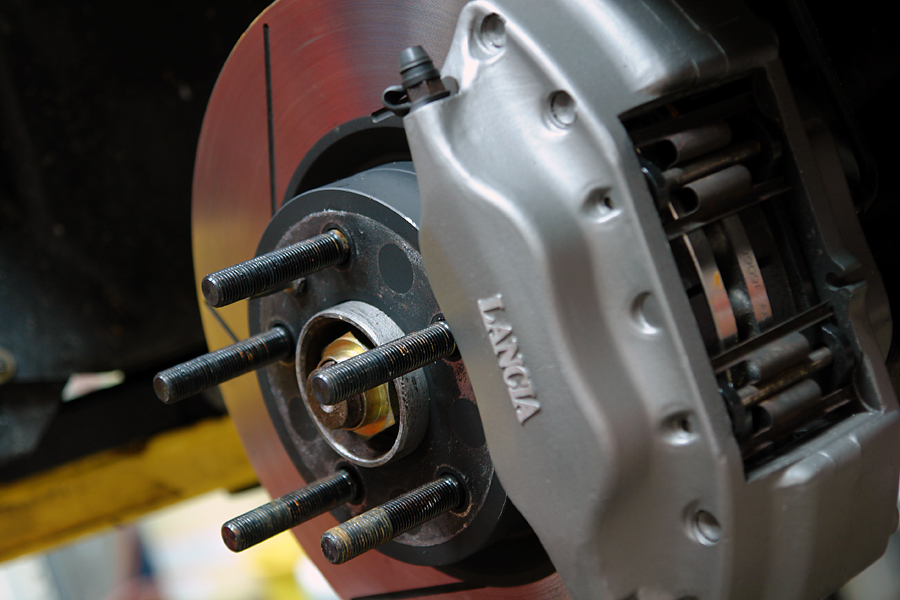

Because spending money on expensive pretty lug nuts are a must, extended studs were installed to the front and rear hubs, replacing the traditional European concept of using wheel bolts.

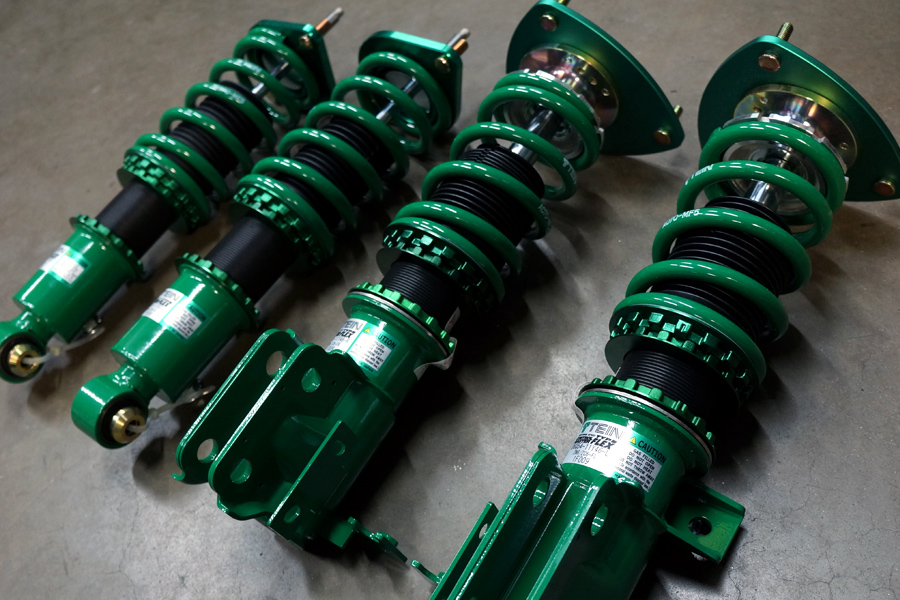

TEIN WINDING MASTER
The MONO FLEX coilover kit has been developed for entry-level competition motorsports and advanced street driving. Features include 16-way damping force adjustability (combined compression and rebound), a mono-tube internal design, pillowball upper mounts, and EDFC compatibility. There are independent adjustments for ride-height and spring pre-load settings for increased suspension tuning. The new Mono Flex also includes TEIN’s latest technological innovation, Micro Speed Valving (MSV) system, which allows the driver to feel a greater difference in damping force adjustments. Designed and developed for consumers seeking aggressive handling on the street and at the track.
Additional Features:
• Steel Construction
• Mono Tube internal construction
• Inverted design for strut type front and rear
• Ride Height adjustable via threaded body and spring seats
• 16 way adjustable dampers, compression and rebound combined
• M.S.V. Technology for improved damping force adjustability
• Pillow ball upper mounts for increased steering feel
• Upper camber adjustment on front for strut type vehicles
• EDFC (Electronic Damping Force Controller) compatible
• Anodized brackets with Teflon coated shock body for heavy duty rust prevention
